Ceiling Negative Pressure Unit

INTRODUCTION

Ceiling Negative Pressure Unit can be installed on the ceiling of the patient rooms to convert it into a temporary

Negative Pressure Isolation Room(NPIR) in case of an emergency case related to infectious diseases.

After the use of NPIR is done, our ceiling negative pressure units can be used for ventilation and air purification(optional).

It takes much less time and cost then constructing a typical NPIR.

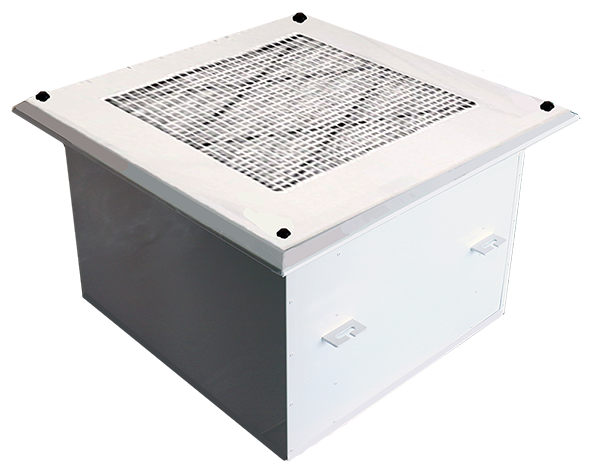

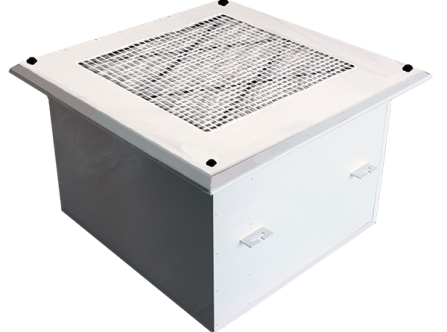

Installed device

Controller

CHARACTERISTICS

COVER RANGE

Ceiling Negative Pressure Unit applicable for up to 100㎥ ±15% room

GENERAL FEATURES

Aerodynamic design presents significantly less noise and vibration compared to other similar products

PRE filter grabs large particle dusts

HEPA filter grabs fine dust and high-risk pathogens

Digital display installed outside the room to check the negative pressure status inside the room.

Air volume adjustable by BLDC motor (0 ~ 25 CMM)

NETWORK SYSTEM (Optional)

Built-in RS485 network system allows you to check and control the negative pressure status

and filter replacement cycle of the rooms at the central management room

SPECIFICATION
