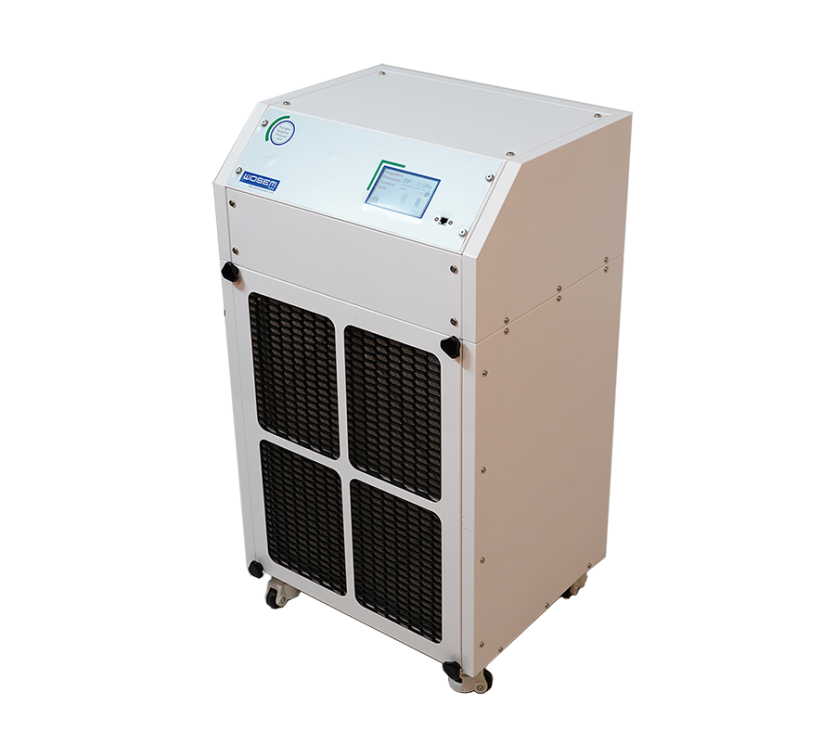

Portable Negative Pressure Unit

WS-M-500, WS-M-2400-2

INTRODUCTION

Portable Negative Pressure Unit can be easily installed in a single or multiple patient room to convert it into a temporary

Negative Pressure Isolation Room(NPIR) in case of an emergency case related to infectious diseases.

After the use of NPIR is done, our portable negative pressure units can be easily removed and stocked in storage.

It takes much less time and cost then constructing a typical NPIR.

CHARACTERISTICS

COVER RANGE

WS-M-500 applicable for up to 30㎥ ±15% room

WS-M-2400-2 applicable for up to 100㎥ ±15% room

GENERAL FEATURES

Aerodynamic design presents significantly less noise and vibration compared to other similar products

PRE filter grabs large particle dusts

HEPA filter grabs fine dust and high-risk pathogens

Digital display installed outside the room to check the negative pressure status inside the room.

Air volume adjustable by BLDC motor (0 ~ 25 CMM)

NETWORK SYSTEM (Optional)

Built-in RS485 network system allows you to check and control the negative pressure status

and filter replacement cycle of the rooms at the central management room

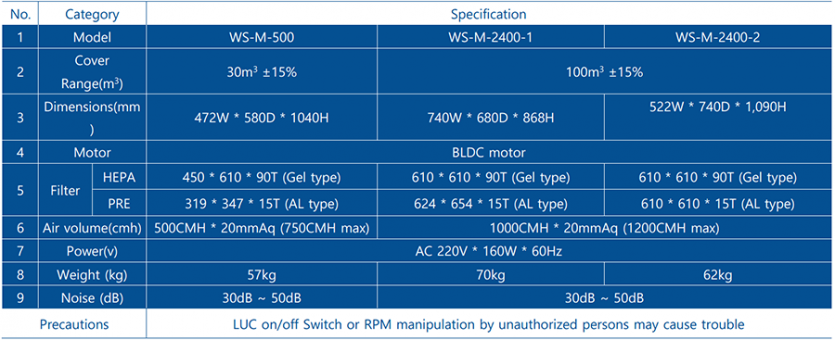

SPECIFICATION
